CNC press brakes, sheet metal guillotines and box & pan folders, with tooling, spares and service support across the UK.
Machinery
Sheet metal working machinery.
Choose a machine range to see capacities, equipment and prices.
CNC press brakes · Sheet metal guillotines · Box & pan folders · All sheet metal working machinery

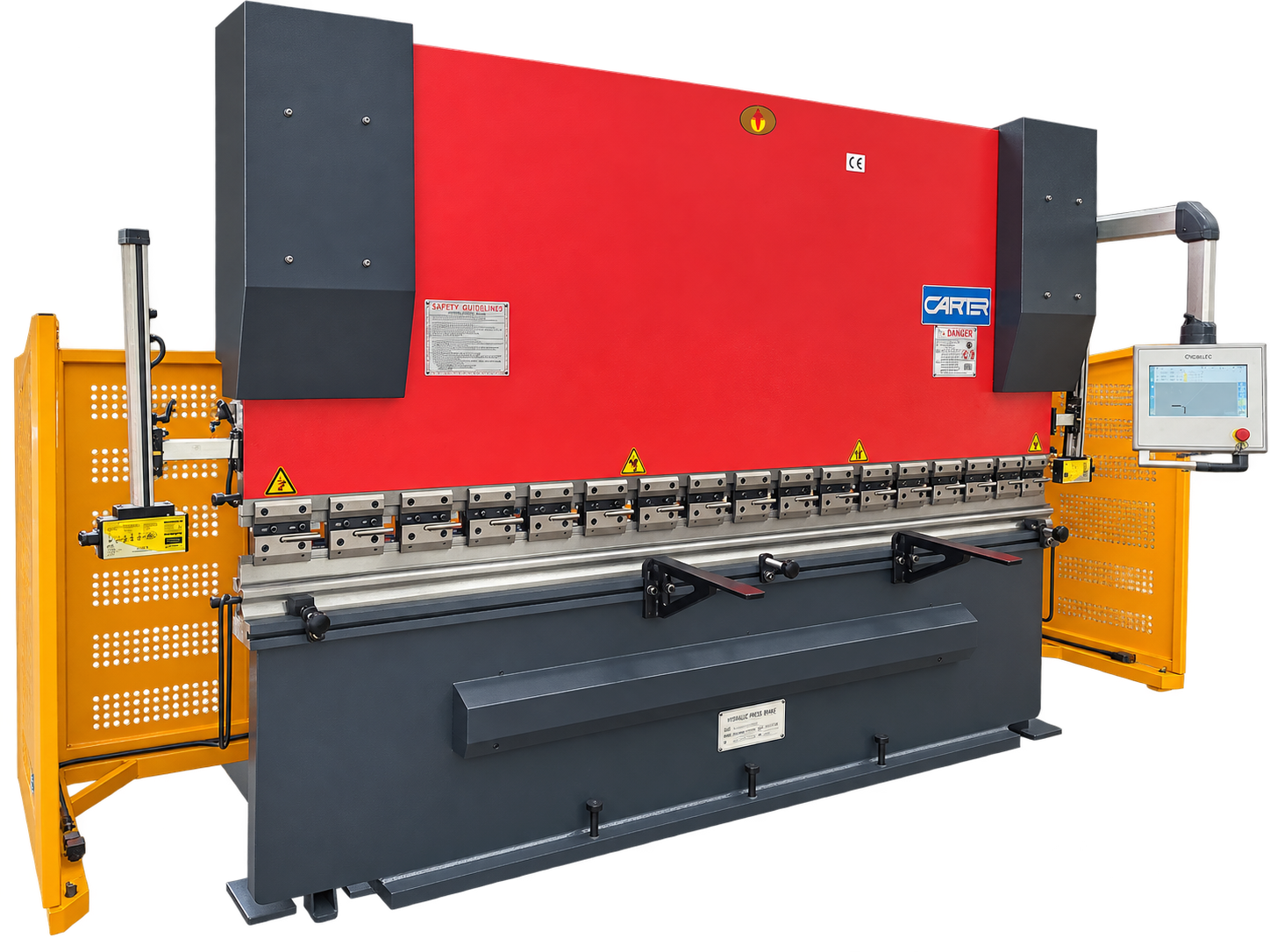

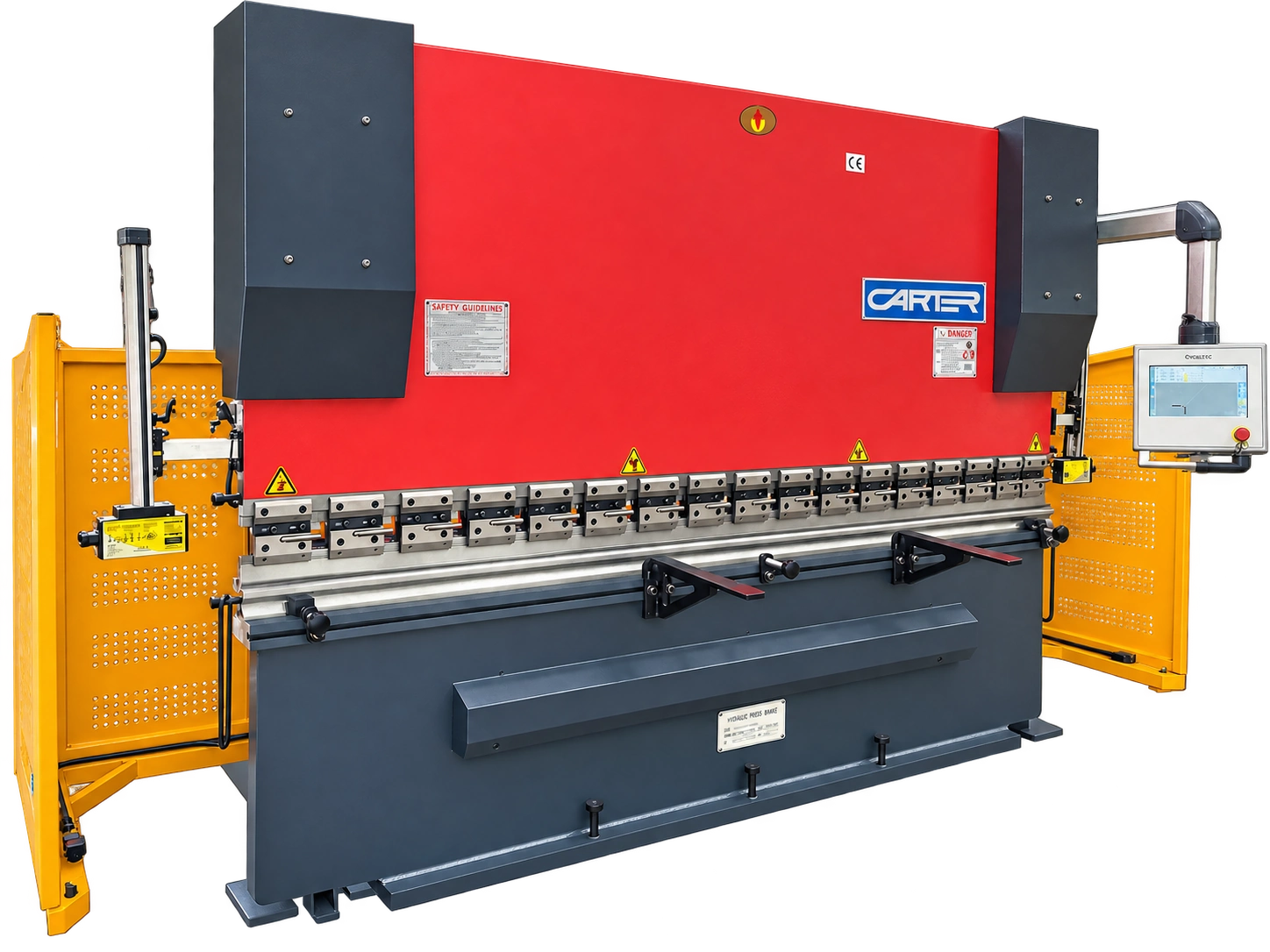

5-axis CNC press brakes
Built for accurate bending.
Graphical touchscreen control, powered mechanical crowning and standard Euram tooling.
Press brake capacities & prices 23 sizes
£30,883 + VAT and delivery
Model 1010 gooseneck top tooling and a multi-V bottom tool fitted as standard. Commissioning, basic training and a 12-month parts and labour warranty.
Enquire about this sizePress brake specification
- 125 tonnes, 3400 mm bending length and 3000 mm between the side frames.

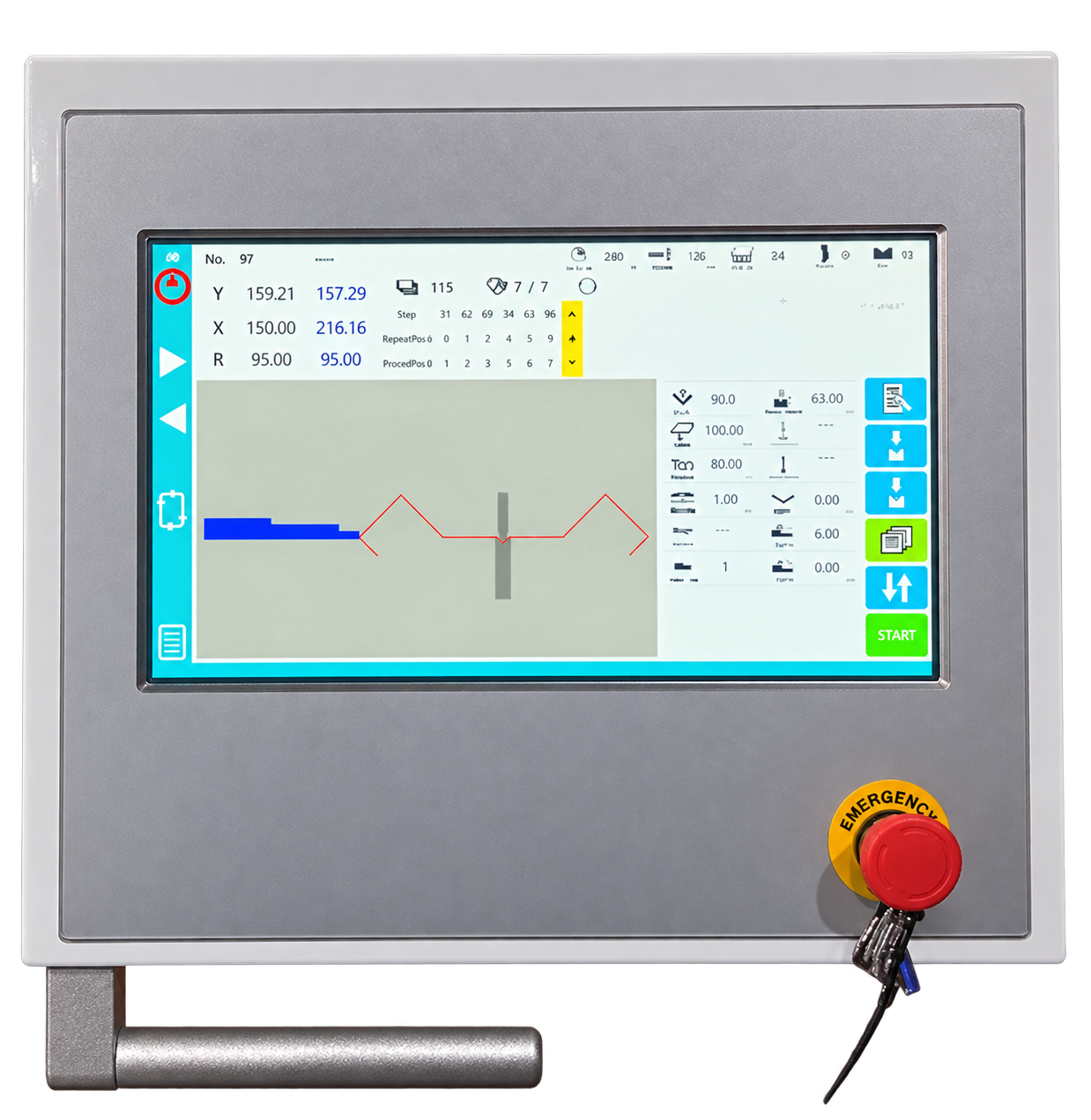

- Graphical 2D touchscreen, material settings, tool library and programmable operation.
- Fiessler laser guarding and quick-release top holders with safety tang.
- Y controls the upper beam, X backgauge depth, R backgauge height, P bending pressure and ADS mechanical crowning.

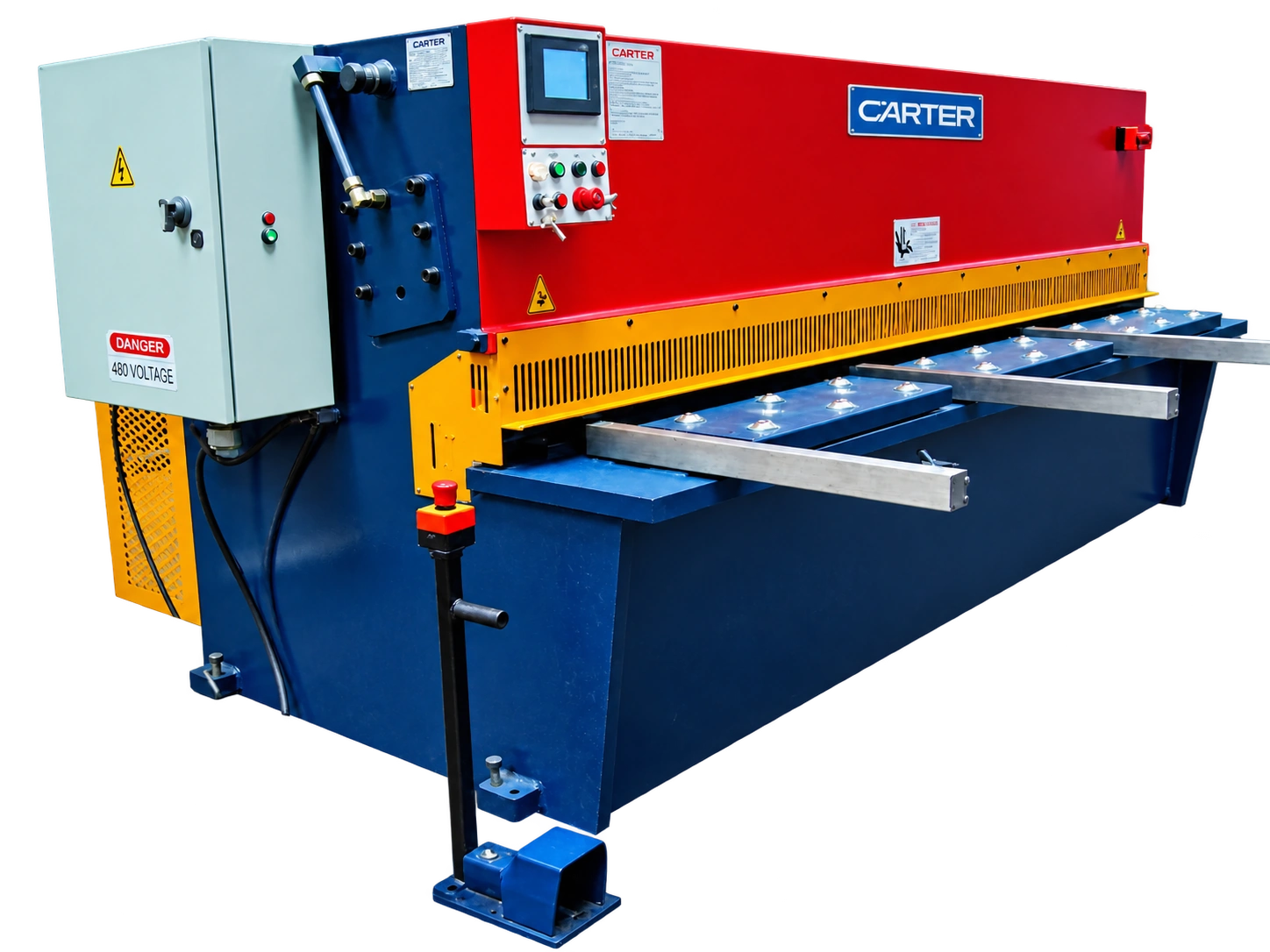

CNC hydraulic guillotines
Cutting made straightforward.
Programmable touchscreen control and powered rear sheet support for thin-gauge work.
Guillotine capacities & prices 22 sizes
£18,160 + VAT and delivery
Commissioning and basic operator training, with a 24-month parts and labour warranty. Confirm availability and specification for your chosen size.
Enquire about this sizeGuillotine specification
- Programmable CNC touchscreen control and powered backgauge.
- Squaring and support arms, with ball transfers in the bed infill plates.
- D2 hardened multi-edge blades and shadow-line lighting.
- Adjustable blade gap and cutting length, and powered rear thin-gauge sheet support.
Manual treadle-operated guillotine
Looking for a foot-operated manual machine?
View manual guillotineManual sheet metal folding
Box & pan folders.
Segmented top tooling for trays and boxes, with manual control for general sheet metal fabrication.
40–200 tonnes · punching, shearing and bending
More capability. One machine.
Eight hydraulic steelworker models, with metric capacities, working station photographs and included equipment.
TTMC CS-315, CS-350 & replacement springs
Circular saws. Spares to match.
Explore the TTMC CS-315 and CS-350 circular saws, plus replacement return spring enquiries.
Manual & hydraulic double mitre 250 mm
Choose how you cut.
Compare the Carter Manual 250 and semi-automatic hydraulic 250 mm double mitre bandsaws.
Carter UB-4 manual bar bending
Set the angle. Make the bend.
Carter UB-4 bench-mounted manual bar bender with an angle guide and interchangeable forming blocks.
Manual foot-operated sheet cutting
Foot operated. Workshop ready.
Carter treadle-operated manual guillotines with front sheet supports, mechanical rear gauging and mesh guarding.
Motor-driven tube-end preparation
Prepare the joint.
A compact Carter tube notcher. Explore the machine photographs and enquire for the tube sizes and material you work with.
Blades & spares
Keep your machines working.
Blades & spares
Guillotine blades.
From stock or made to order.
Match the machine make, blade dimensions and mounting-hole pattern.
Find blades for your machine
Send us your make and model, blade dimensions and a photo of the mounting holes. We’ll help check compatibility and confirm availability.
Ask about a bladeEuram press brake tooling
The right profile.
The right length.
Punches, dies and holders for your press brake. Choose by tool reference, profile or length.
Punches, dies & holders
415 mm, 835 mm and segmented lengths. Tell us your tool code or send a photo for help identifying the profile.
Ask about toolingProtective film
Press brake protective film to help reduce die marks on finished sheet. Available in 3,000, 5,000, 10,000 and 20,000 mm lengths.
Steelworker punches & dies
Round, slotted, square and rectangular tools for Geka, Kingsland, Piranha, Carter, Sunrise and IMS enquiries. Check prices and send the machine and tool dimensions for fitment confirmation.
Choose steelworker toolingSpares, consumables & workshop equipment
Replacement blades, steelworker parts, lubricants, accurate measuring tools, safety equipment and phase conversion.
Bending reference
Plan your bend setup.
Bending force references, tooling guidance and bend sequence planning.
Tonnage calculator & charts
Estimate air-bending force from material, thickness, bend length and die V-opening. Check the selected machine and tooling ratings before use.
Hemming & bend sequence planning
Open and closed hemming charts, plus bend-order comparisons using the expanded Euram tool models.
3-roll & 4-roll bending guide
Compare initial-pinch, double-pinch and four-roll motion. Calculate cylinder blank length and check a rolled radius.
Open rolling guide & animationsService & maintenance
Support after the sale.
Planned maintenance, replacement parts and practical support for your workshop machinery.
Planned maintenance
From £950 + VAT. Two planned service visits over 12 months. Tell us the machine make, model and the work needed for a quotation.
Service charges
- Standard machines — labour
- £88 per hour
- NC & CNC machines — labour
- £105 per hour
- Travelling time
- £68 per hour
- Mileage
- £1.35 per mile
Minimum labour charge: 4 hours. All rates exclude VAT.
Spares & breakdown support
Send the machine model and a description of the fault or part required. We’ll discuss the work and quote before booking.
