Manual 250

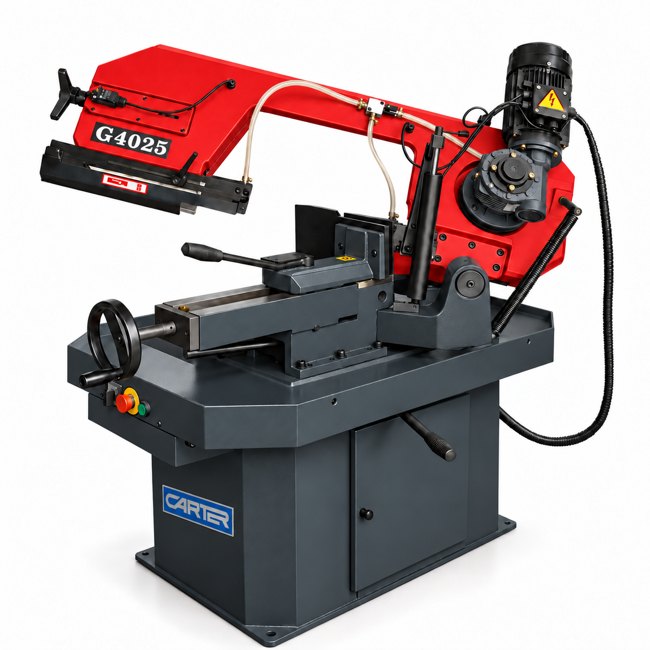

Carter Manual 250 Double Mitre Horizontal Bandsaw
Manual clamping and material positioning, with a swivelling bow for double mitre cutting.
Price on application
Ask for current availability and a delivered quotation.
| Straight cut — round | Ø250 mm |
|---|---|
| Straight cut — rectangle (W × H) | 280 × 230 mm |
| 45° mitre, either direction — round | Ø190 mm |
| 45° mitre, either direction — rectangle | 180 × 230 mm |
| 60° mitre, one direction — round | Ø120 mm |
| 60° mitre, one direction — rectangle | 115 × 230 mm |
| Blade size (L × W × thickness) | 2750 × 27 × 0.9 mm |
| Blade speeds | 53 / 79 m/min |
| Main motor | 0.85 / 1.1 kW |
| Material feed | Manual positioning |
| Vice | Manual |
| Machine dimensions (L × W × H) | 1500 × 900 × 1300 mm |
| Machine weight | 350 kg |
Capacity values are for the machine family. Confirm electrical supply and the exact supplied specification with your quote.
