Carter 3000 × 1500 · 3000 W
Enclosed single-table fibre laser cutter with guarding.
£47,300 + VAT
Carter fibre laser cutting · 3000 W and 6000 W
Enclosed fibre laser cutters.
Carter 3000 × 1500 mm enclosed CNC fibre laser cutters for sheet and plate work, available with 3000 W or 6000 W laser power. Guarding is included. Choose a single table or add a dual-table system to load one table while the other is cutting.
From £47,300 + VAT. Production and shipping take approximately 70 days from order and deposit. See machine prices and optional equipment below.
Machine prices
Choose your laser power.
Carter 3000 × 1500 · 6000 W
Enclosed single-table fibre laser cutter with guarding.
£54,450 + VAT
Optional equipment
| Option | Additional price, excluding VAT |
|---|---|
| Dual-table system | £7,150 — load one table while the other is cutting. |
| Dust filtration / exhaust system | £7,150 |
| Air compressor | £6,160 |
Production and shipping: approximately 70 days from order and deposit.
All prices exclude VAT. Delivery, positioning and installation arrangements are confirmed in your quotation.
Carter 3000 × 1500 fibre laser cutter · 3000 W specification
Carter 3000 × 1500 · enclosed single table · 3000 W
The specification below covers the 3000 W configuration. We confirm the selected source, cutting head, gas and site requirements with your quotation; the 6000 W configuration has its own final specification.
| Working area | 3000 × 1500 mm |
|---|---|
| Laser power | 3000 W MAX fibre source |
| Machine format | Enclosed, top-seal, single-table CNC fibre laser cutter |
| Laser head / control | Shanghai BOCI BLT310 auto-focus head; Shanghai Baichu capacitive THC; Cypcut FSCUT2000E EtherCAT control (supplier proposal) |
| Drives and motion | Inovance servos; SMAGIC racks and guides; Techmech reducer (supplier proposal) |
| Cooling | Tongfei water chiller |
| Travel | X 3050 mm · Y 1520 mm · Z 100 mm |
| Proposed accuracy | X/Y ±0.03 mm/m · Z ±0.01 mm; repeat X/Y ±0.02 mm · Z ±0.005 mm |
| Rapid traverse proposed | X/Y 80 m/min · Z 30 m/min |
| Approx. footprint | 4530 × 2520 × 1450 mm, subject to final enclosure and extraction layout |
| Electrical proposal | 220V ±5% or 380V ±5%, 50Hz; approx. 30 kW input; central protective earth required |
| Environment proposed | −5 to 50°C, up to 70% non-condensing humidity; IP54 cabinet proposal |
Supplier proposal note.

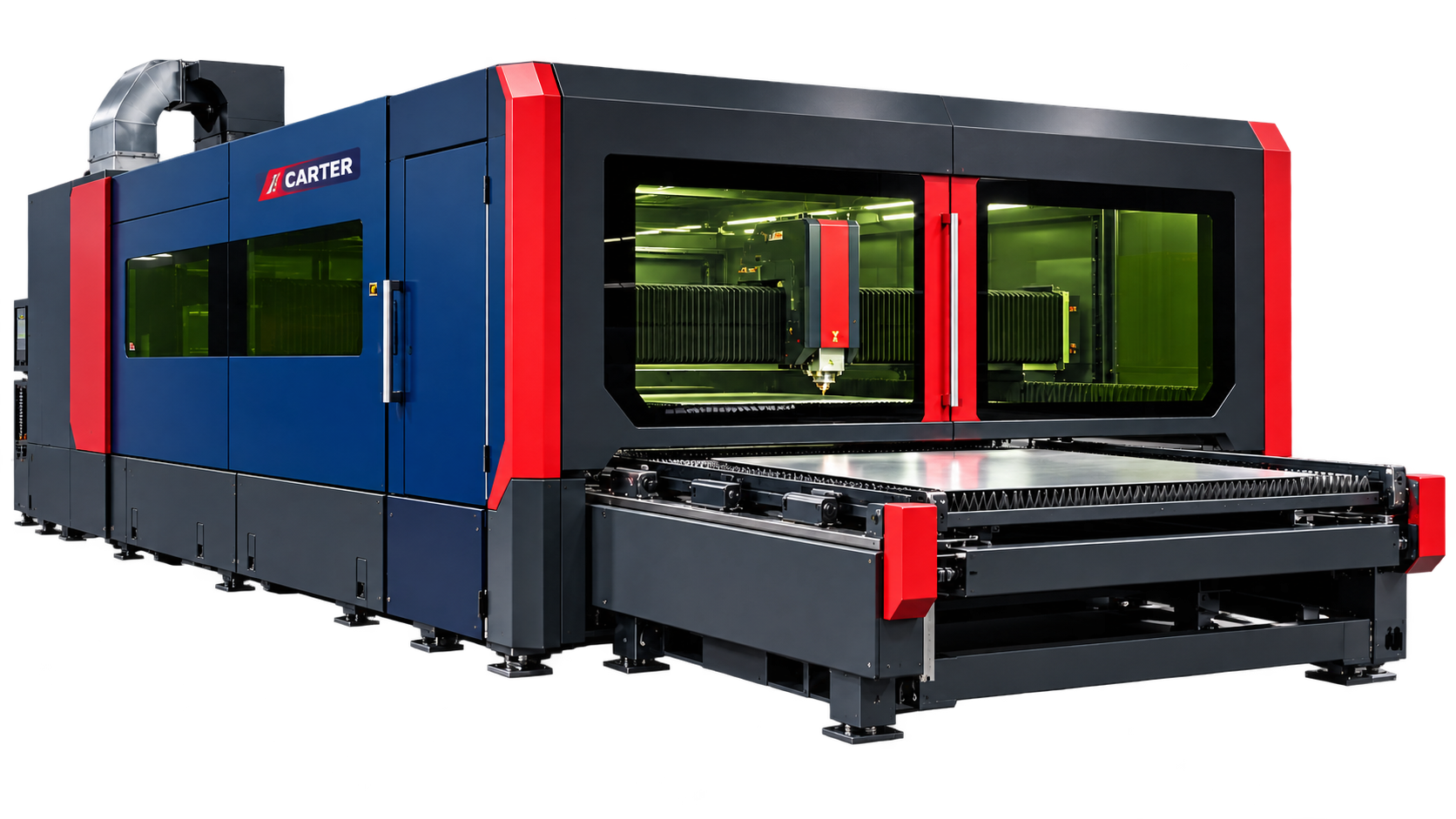

The machine image is a Carter presentation render. Dust extraction/filtering and an air compressor are priced as options above. Material-specific cutting capability and the final component specification are agreed with your quotation.
Materials and process
Confirm the material before choosing the package.
Mild steel
The supplier proposal includes mild-steel cutting data. Thickness, gas, nozzle and speed are confirmed by trial cut and the signed cutting schedule.
Cutting limits confirmed for your material
Stainless and aluminium
Fibre transmission supports non-ferrous work, subject to the selected source, assist gas, head, extraction and the material grade.
Material suitability confirmed with your quotation
Copper, brass and reflective metals
Reflective metals require specific risk assessment, machine configuration and supplier approval before they are offered for production.
Reflective-metal configuration by agreement
Send us a sample or drawing.
Include grade, thickness, sheet size, hole/detail requirements, expected production and whether the material is coated or galvanised. We will confirm the appropriate test piece, gas and extraction package.
Safety, conformity and positioning
Laser safety is part of the quotation.
Guarding included; site requirements confirmed with your quotation
We will not assume that a machine, helmet or extractor is suitable without checking the positioning. The quotation can cover:
- Laser class and the UKCA/CE declaration and technical-file position
- Enclosure and guard specification, access and viewing arrangements
- Door interlocks, safety relays, laser-enable circuit and emergency-stop interface
- Required extraction airflow, ducting, spark control and filtration
- Approved eyewear and operator PPE for the relevant wavelength and process
- Electrical supply, protective earth, chiller water quality and compressor requirements
- Delivery, positioning, commissioning, training and acceptance test
Cleaning and cutting modes: where a handheld HFW system is being considered instead, the additional protection, enclosure and extraction requirements are handled on the laser-welder page.
Specify your cutting package
Six details that shape the quote.
1 · Material
Grade, thickness, finish and reflective properties.
2 · Sheet size
Maximum sheet, nesting approach and loading method.
3 · Production
Parts per day, duty cycle and cut-quality expectation.
4 · Site
Floor space, access, power, gas, extraction and lifting.
5 · Documentation
Required conformity, guarding, training and service package.
6 · Test parts
Send a drawing or sample so we can agree an acceptance cut.
Your machine package
All new machines include a 24-month parts-and-labour warranty. Ask about part exchange, finance, delivery, offloading and positioning when requesting your quotation.
Finance is subject to approval. Delivery, handling and positioning are quoted for your machine and site.
