Carter 50 mm geared-head drill

A 50 mm geared-head drilling machine with power spindle feed, tapping, coolant and motorised table elevation.

View optionsRequest a quotation

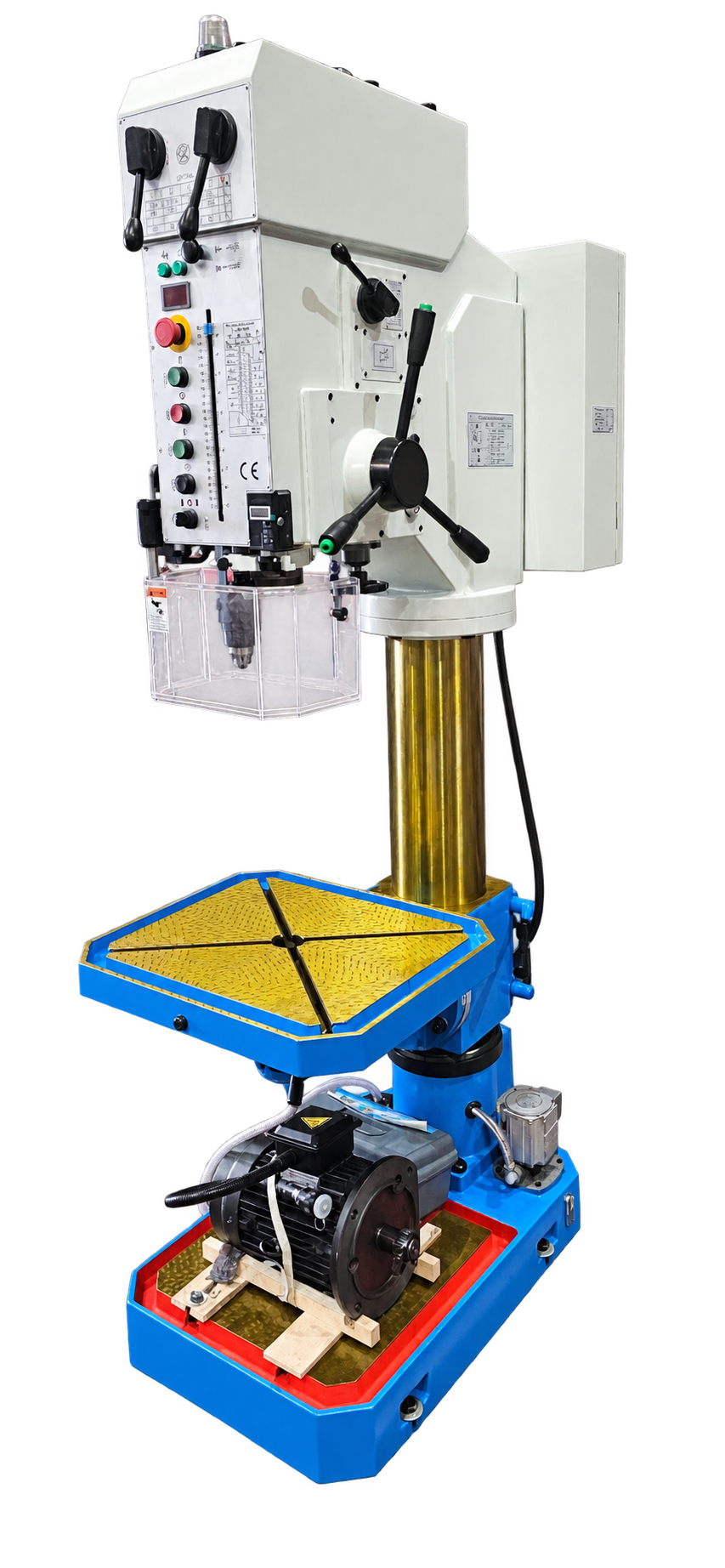

Carter 50 mm geared-head drill
Carter 50 mm geared-head drill · tap to enlarge
Choose your machine

Geared-head drilling machines

Carter 50 mm geared-head drill

Price on application

Contact us for current specification, availability and a delivered quotation.

Machine specification
Maximum drilling capacity50 mm
Tapping capacityM24
Spindle taperMT4
Spindle speeds12 speeds · 42–1865 rpm
Power feeds0.07 / 0.15 / 0.26 / 0.40 mm/rev
Table size510 × 380 mm
Table movement360° rotation and ±45° swivel
Table elevationMotorised and manual
Main motorTwo-speed · 2.2 / 2.8 kW
Supply415 V three-phase
Approximate weight950 kg

Machine details

01

Fully geared head with power tapping and four spindle feed rates.

02

Electromagnetic feed clutch, integrated coolant system and worklight.

03

Ask us to confirm tooling, installation requirements and current delivery options.
