Our HFW handheld laser-welder range: compact water-cooled fibre-laser systems for fabrication, repair and sheet-metal work.
HFW / FIBRE LASER WELDINGChoose 1500W at £8,995 + VAT or 2000W at £10,495 + VAT. Both packages include wire feed and a 24-month parts-and-labour warranty. Delivery, positioning and the safety package are confirmed in your quotation.
For general fabrication and repair work where a compact water-cooled system is the right fit.
£8,995 + VAT
Carter complete-package price · subject to final specification.
Additional power for heavier fabrication work, with the same compact handheld system format.
£10,495 + VAT
Carter complete-package price · subject to final specification.
Save 10% when buying 2 or more HFW laser welders, or 15% when buying 4 or more. Discounts apply to the machine prices above; VAT, delivery and any separately quoted safety equipment are additional.
These are the supplied HFW equipment photographs, retained alongside the finished product visual so customers can see the cabinet format, controls, torch and hose arrangement.
The HFW platform can be configured around welding, cutting and cleaning requirements. These generated renders are illustrative; the selected mode, materials, operating limits, guarding, extraction and PPE are confirmed as POA for each positioning.

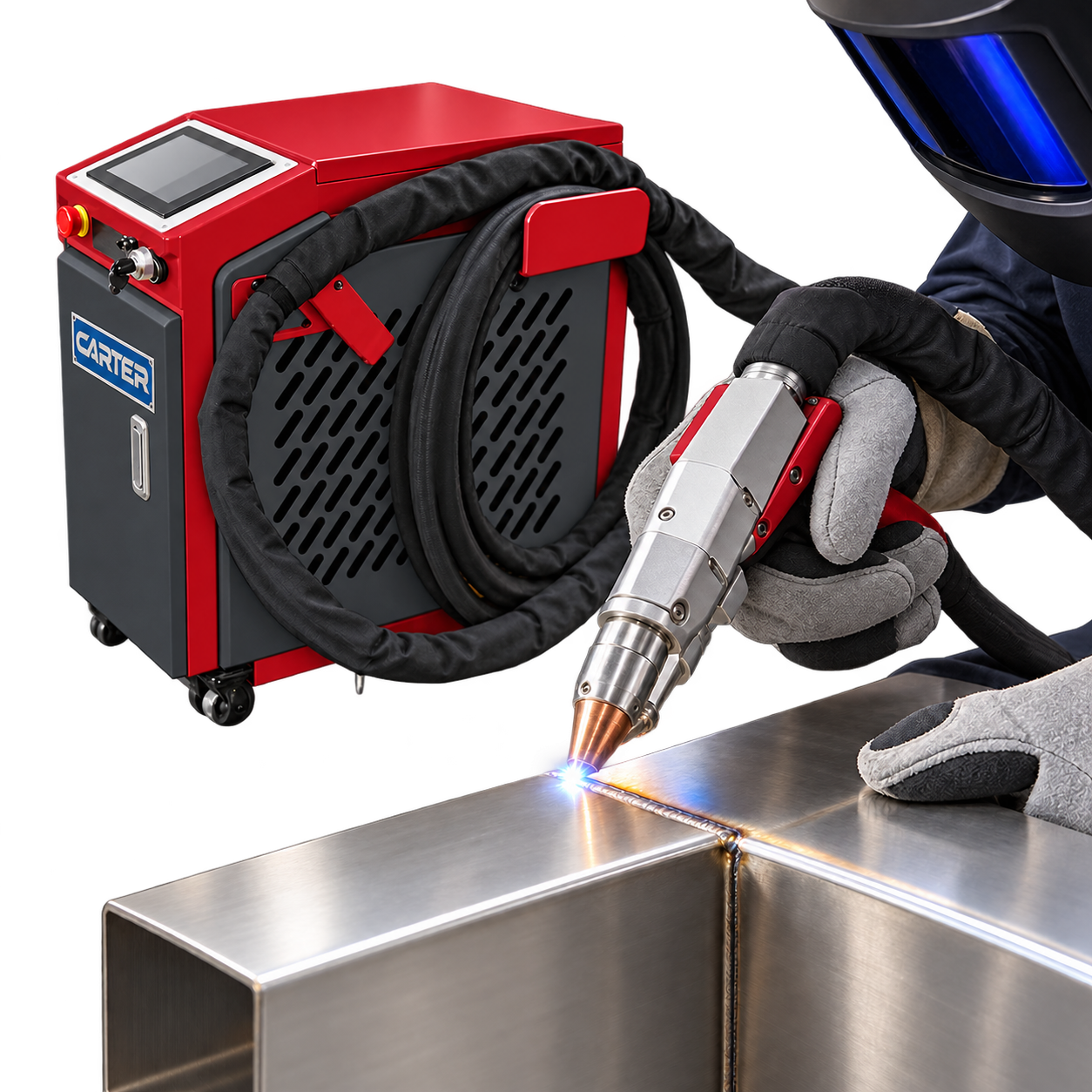

Illustrative view of a controlled seam-welding setup for fabrication and repair work.

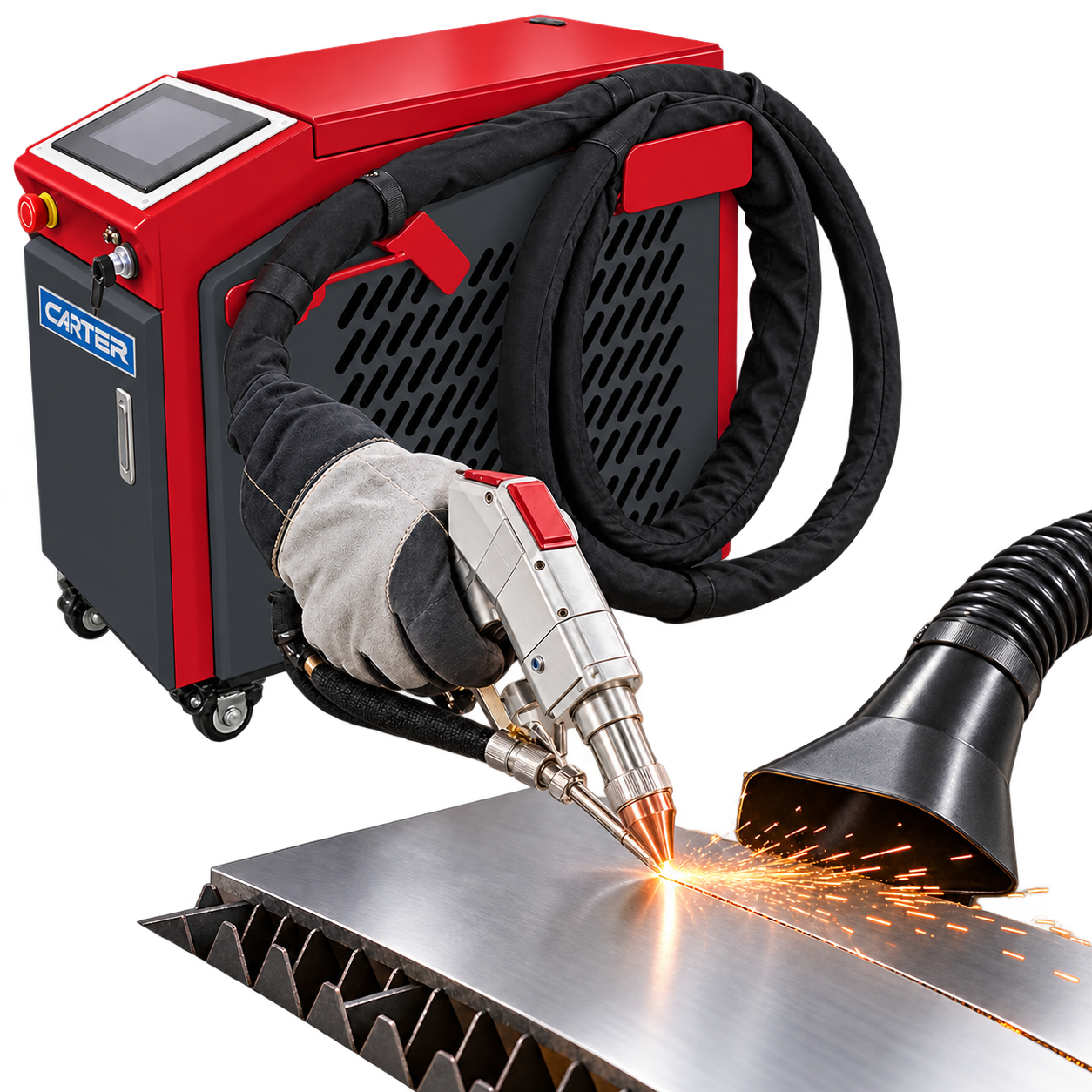

Illustrative view of a short sheet-metal cut with extraction and protective handling shown.

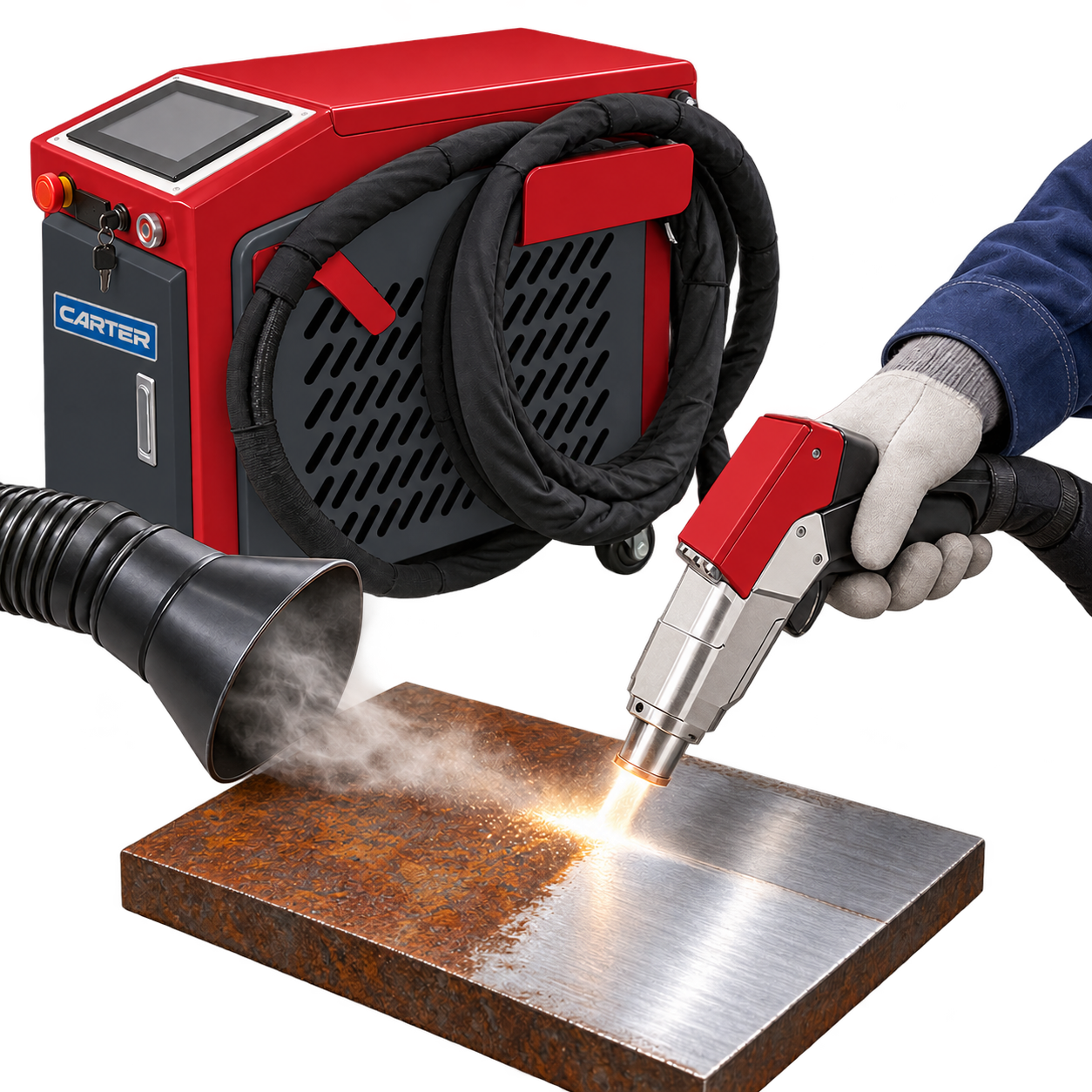

Illustrative view of rust removal with the cleaned metal surface revealed progressively.
These visuals show possible workflows, not guaranteed process limits. Final material suitability, cut or cleaning limits, laser class, enclosure, extraction, interlocks, PPE, commissioning and training remain subject to site assessment and supplier confirmation.
The table below reflects the HFW sheet supplied so far. Items marked TBC are deliberately held back until the complete specification arrives.
| Laser source | |
|---|---|
| Source | Raycus fibre laser (supplier confirmation pending) |
| Central wavelength | 1080nm ±10nm |
| Working mode | Continuous / pulse |
| Output power | 1500W / 2000W |
| Output power error | ±2% |
| Fibre core diameter | 50µm |
| Optics & utilities | |
| Laser incidence | Coaxial |
| Port type | QBH |
| Cooling | Water cooling |
| Power supply | 415V / 3P / 50Hz |
| Working temperature | 10–40°C |
| To confirm | |
| Penetration / “pool depth” | TBC — supplier sheet is truncated and the translation is unclear |
| Collimation and focus lens options | TBC — supplier sheet needs the units checked |
| Wire feed and package contents | Wire feed included. Confirm the nozzle set, consumables and selected process functions in the quotation. |
Wheeled cabinet format with the laser source, chiller and controls together in one mobile system.
Process options can be configured around the work required; wire feed is included; torch options, operating limits and protection requirements are confirmed with the quotation.
Configured for a 415V three-phase, 50Hz supply and water-cooled operation. Ask us to check your positioning before ordering.
The complete package will be quoted to suit the client’s requirements, available space, materials, process and positioning conditions. It can include:
Final equipment, layout, commissioning, training and any positioning work are subject to site assessment and supplier confirmation.
Send us your available space, material range, typical joint details and any cleaning or cutting requirements. We will quote the appropriate safety, extraction, PPE and positioning package as POA.
All new machines include a 24-month parts-and-labour warranty. Ask about part exchange, finance, delivery, offloading and positioning when requesting your quotation.
Finance is subject to approval. Delivery, handling and positioning are quoted for your machine and site.
